DEDICATED 100% TO THE GLOBAL TANK STORAGE INDUSTRY
DEDICATED 100% TO THE GLOBAL TANK STORAGE INDUSTRY
For more than 30 years, ELSONT has been supplying the oil industry. Decades of expert knowledge and continued contact to operators of tank farms and refineries gives ELSONT the edge over competitors and gain new clients.
Based on over 20 years of installation and maintenance experience, ELSONT’s specialised range of equipment is being installed in refineries all over the world.
ELSONT is ISO 9001:2000 and SCC** and EN1090 certified, and all products are manufactured to strict quality standards. Manufacturing of our products is based in modern facilities in Seoul, Korea and Europe.
We strive to reduce product losses through evaporation and maintain product quality with:
Especially for the storage of bio-fuels like bioethanol or biodiesel, it is of prime importance to make the right choice of materials used. Together with you, ELSONT carries out all regulatory requirements and gears your tank up for the demands of the future.
Storage Terminals Magazine
The Light Bulb, Studio 401,
1 Filament Walk, London, SW18 4GQ, UK
Subscribe to Storage Terminals Magazine

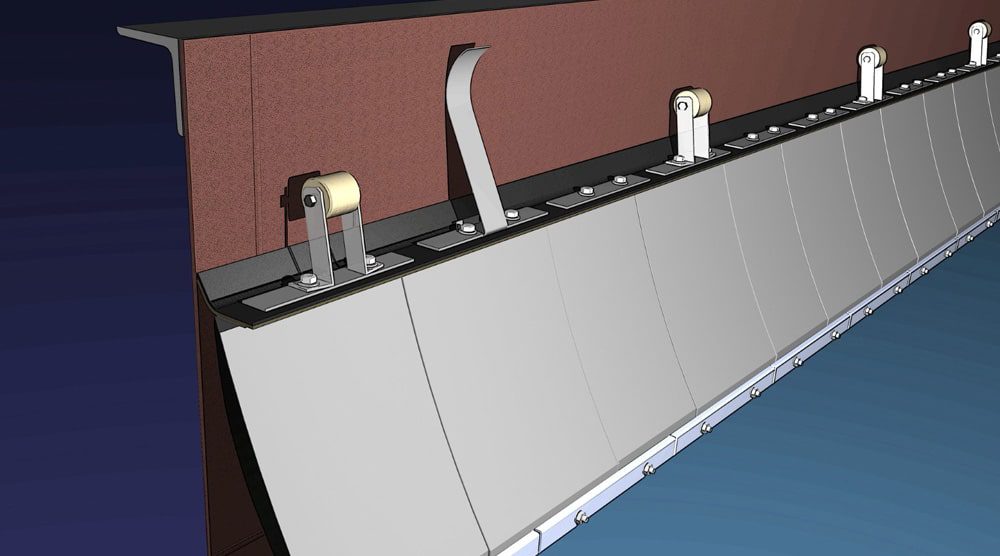

We provide seals with the best available technology, with or without wax scrapers, normal or low profile to maximize your tank volume. Up to six different primary seals and secondary seals with a low profile are part of our portfolio.
All seals to be equipped with PE or PTFE vapour barrier fabrics
All seals to be equipped with PE or PTFE vapour barrier fabrics
FLOATING SUCTION LINES for tanks with and without Internal Floating Roofs for external floating roof tanks. A central swing joint or side swing joint for floating suctions is available from 6” to 46“. These systems are also available in stainless steel cast.
FLOATING SKIMMERS to separate oily content from water by removing the top layer of a 2 phase liquid stored in a tank. Often used for sour water tanks, also available in high quality stainless steel and in two line sizes 3” and 4” (larger also possible).
For Tanks with and without Internal Floating Roof as well as for External Floating Roof Tanks.

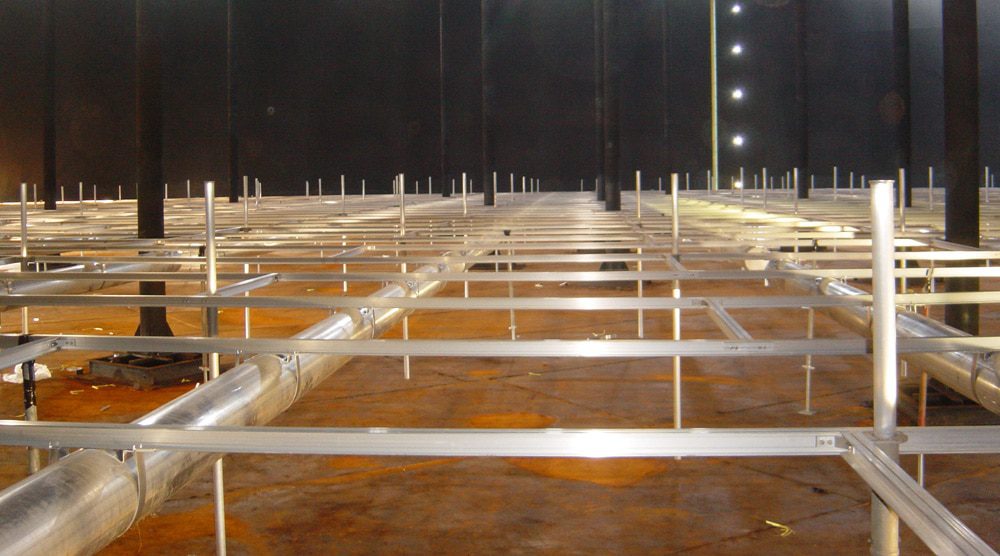

The FULL CONTACT ALUMINIUM HONEYCOMB PANEL INTERNAL FLOATING ROOF has been designed to meet the industry requirement for a low emission; simultaneously it is extremely durable and overcomes the many design problems that exist in other well-known brand IFR’s.
The HEAVY DUTY ALUMINIUM, HYBRID OR ALL STAINLESS STEEL INTERNAL FLOATING ROOF is ideally suited to service in earthquake prone regions or in those tanks subject to sloshing and/or turbulence due to high fill rates or mixers.
An Internal Floating Roof must be easy to install, must have a good handling and must be reliable in operations. This can only be guaranteed, if you consider important facts.
ELSONT’s IFRs are based on a solid frame structure; the pontoons do not have main mechanical functions. The support legs are fixed directly to the rigid framework and not to the pontoons. Our IFR is strong enough to walk on at any time. Loads up to 460 kg/ft² are no challenge for our IFRs.
REDUCE THE PRODUCT LOSS through vapours up to 99% by operating internal floating roofs with mechanical, liquid mounted stainless steel shoe seals.
You have the choice from a variety of rim seals to fit your IFR with or without foam dam: The mechanical shoe seal or the PE wiper seal, as double seal solution, or even a double wiper seal. The shoe seal can be used for the full range of tank products.
The vapour barrier fabric can be made of PU or PTFE with anti-static properties.
Roof supports, gauge poles, ladders, a.s.o. The perfect seal for all appurtenances.

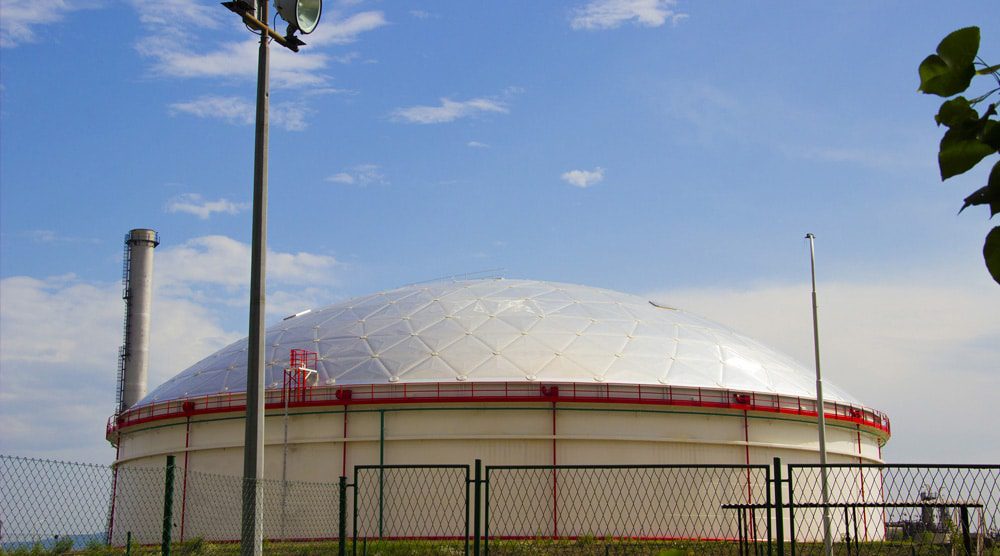

Compared with carbon steel roofs the geodesic aluminium roof is light-weighted, non-corrosive, is easy in handling, is simple and fast to install, at low costs and has a long life expectancy. These facts make an Aluminium Dome a great investment and the right decision.
The ELSONT Heavy Duty Geodesic Dome Roof is the result of over 25 years of experience in practical tank equipment gathered and realised by ELSONT engineers.
Our aim is to provide a Dome to the tank industry, which is extremely durable and overcomes many design problems that exist in other well-established brand domes.
Our Aluminium Dome Roofs comply with API and EUROCODES. We assure fast and easy installation, leak tightness, strong connections of walkways to the dome structure, not to the battens (2 extra screw rails) and many more.
ELSONT has been working with many dome manufacturers from all over the world. This experience makes ELSONT the right partner for your tank revamp and maintenance plans.
ELSONT only works with the best! We supply and install the state-of-the-art materials!
