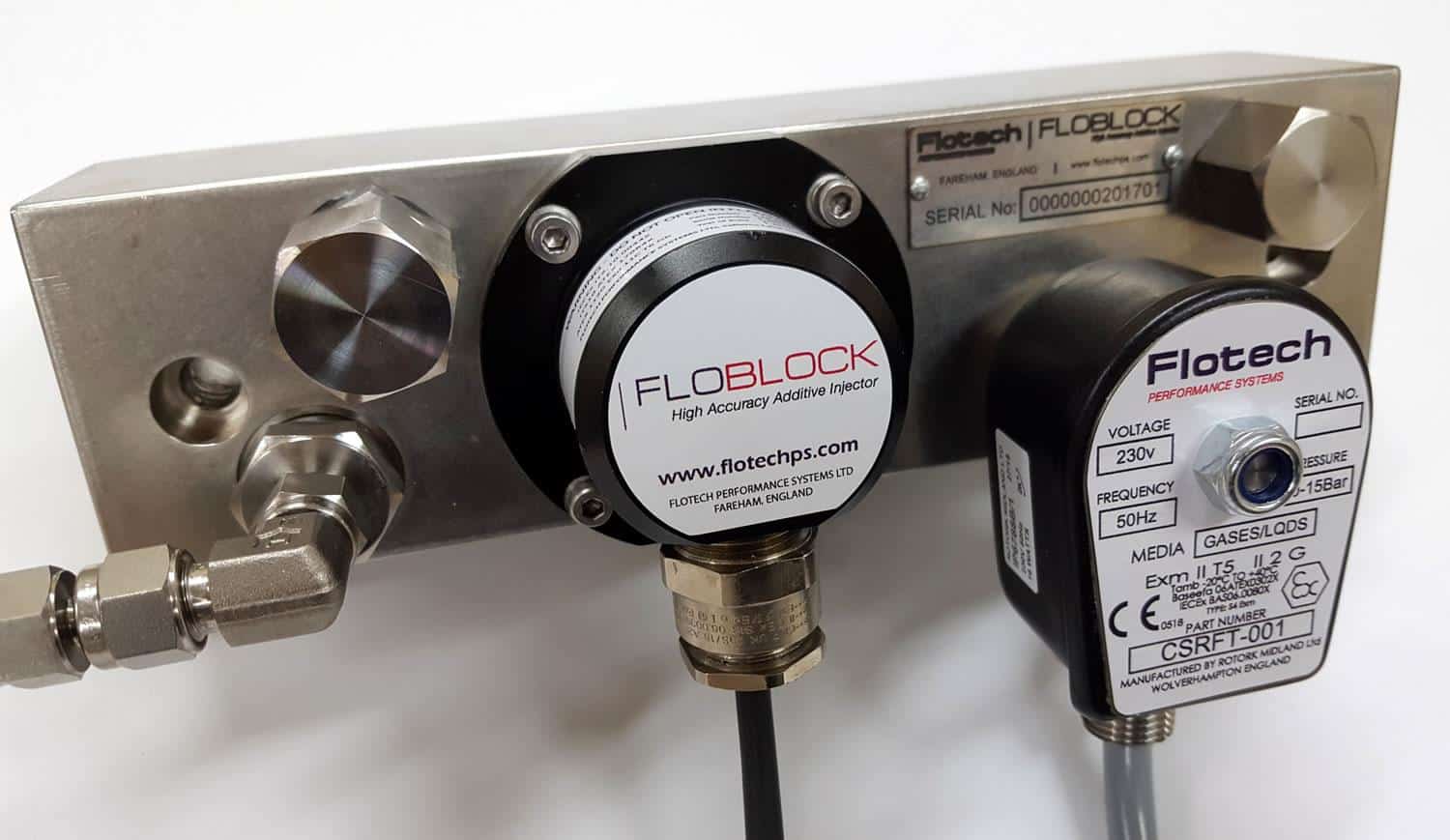

FLOBLOCK Additive Injector

Applications:

• Marker dyes
• DNA markers
• Performance additives
• Stenching & denaturing agents

Benefits:

• The unique design of the FLOBLOCK incorporates features which combined make it the most efficient and reliable injector on the market
• Integrated flow control valve allows fine tuning of additive flow and facilitates calibration under true process conditions for more accurate injection rates and reduced additive wastage
• Integral filter prevents contamination entering the meter or the solenoid
• Inbuilt non-return valve prevents additive contamination caused by reverse flow
• One-piece stainless construction and static seals ensures robust, leak-free performance
• Common bolting pattern and inlet / outlet positions allow direct replacement of most common injectors (adaptors are available where bolting patterns differ)
• Optional dual pulse flow meter provides pulse redundancy to prevent unwanted shutdowns
• Optional stainless-steel gears and PTFE seals ensure performance across a diverse range of chemicals and additives

New Generation J0453 API Coupler

Safer, more efficient & easier to use in the most demanding terminal environments.

Suitable for a range of applications, these API bottom loading adapters and couplers form the mission critical connection during bottom loading of the road tanker at the loading rack.

Features:

• Improved Ergonomics
  Improved environmental and operator safety with an optional integrated pump to further reduce disconnect leaks
• Lightweight Design
  Greatly reduced weight with improved ergonomics, down to just 7.1kg
• Minimal Downtime
  Up to 50% less maintenance downtime
• Ideal for Complex Applications
  Easier sealing maximises safety of complex loading applications
• Increased Pressure
  Working pressure increased to 16 bar (g), with test pressure of 25 bar (g)
• Smooth Operation
  Smoother coupling operation thanks to low engagement force, while providing a secure coupling
• Industry Certified
  Conforms to API RP1004 for compatibility with API adapters

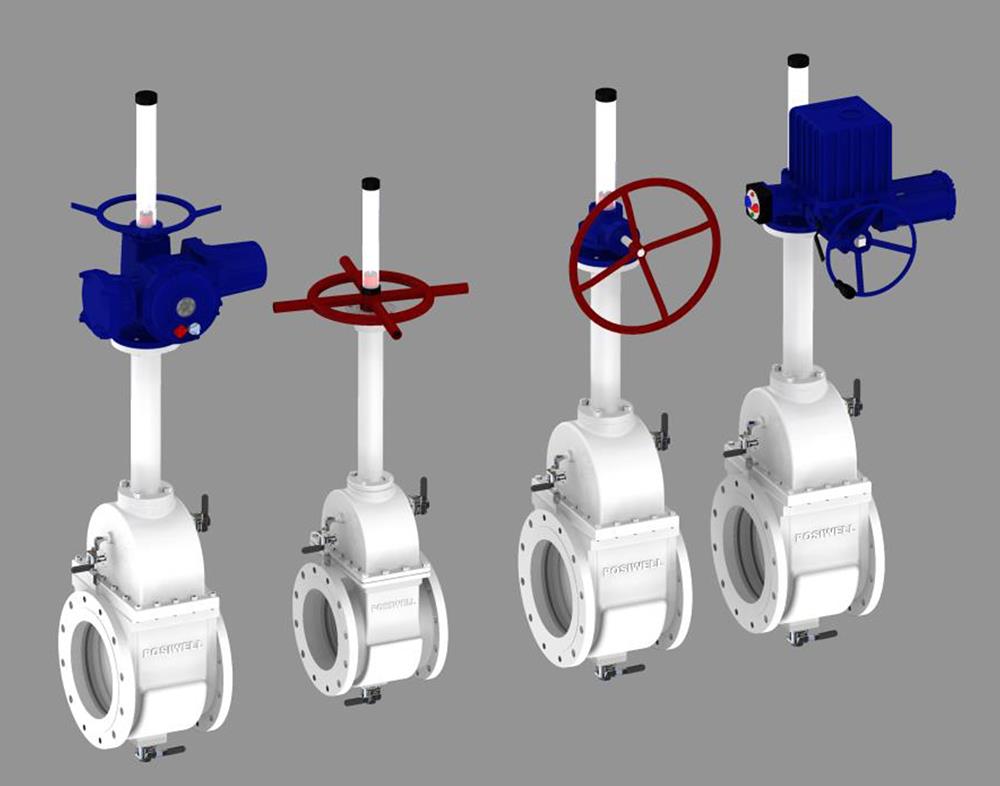

PosiWell Double Block & Bleed Gate Valves have been designed by engineers with over three decades of experience at the forefront of valve service, repair, modifications and automation and a deep understanding of the root causes of DB&B valve failures.

Applications include:

• Aviation terminals
• Oil and gas terminals
• Hydrant isolation
• Tank storage isolation
• Any application that requires zero leakage performance

Benefits:

• Full bore – MAX FLOW – increased flow rate vs plug valves
• Pipeline pigging / smart pigging compatible
• API 6D compliant – ISO14313 dd. Aug 2015 Valves for DBB and DIB
• Body and bonnet materials are zinc phosphate treated – NO electroless nickel plating. NO peeling, flaking or cracking.
• Primary seal is metal-to-metal tested to API 6FA (fire safe)
• Secondary seal RTFE / PTFE alternative
• Thermal relief – bonnet bleed – body drain – standard feature
• Stainless steel valves and piping
• Thermal relief valve drain can be installed either side of flange
• Low torque (use of smaller actuators)
• Face to face as per a standard gate valve (ANSI B16.10 RF Smoot Finish, 125-250AARH)
• Fugitive emission “TUV” tested and certified to EN-ISO 15848-1
• Can be installed in the horizontal or vertical plane
• Rising and non-rising stem configuration available
• CE & PED compliant
• 2” to 40” ANSI Class 150 – Class 300
• ANSI 600 plus other sizes – consult Soliflo

With corrosion and chemical additives being the main causes of failure within traditional DBB valve design, PosiWell DBB-DIB valves come standard fitted with stainless steel trim and in-line replaceable Teflon seat.

In the event of a seat failure, inspection and replacement is a simple task.

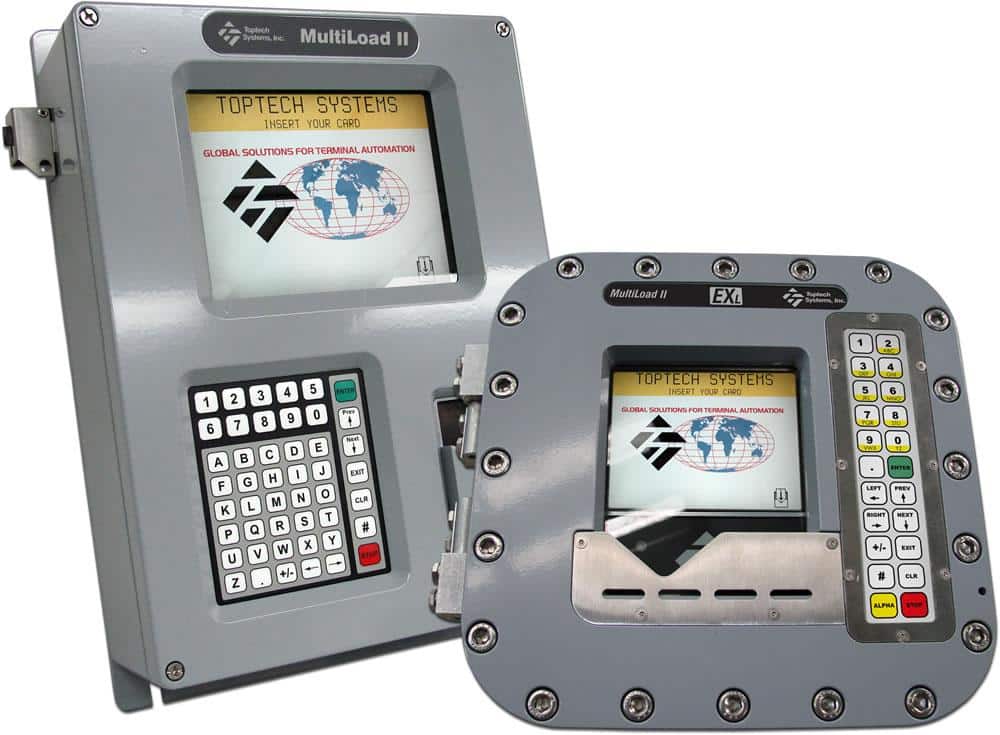

TopTech MultiLoad II Products – Innovative Load Rack Control

Toptech’s MultiLoad II suite of products offers the ultimate combination of usability, features and scalability.

MultiLoad II was designed to improve the traditional pre-set model by offering a number of key benefits, such as: ease of use, powerful stand-alone operation, seamless integration with automation systems, near limitless scalability, and powerful features.

Features:

• Full colour LCD display
• Division 1 and 2 enclosures
• Alphanumeric keypad
• Control up to 12 loading arms per bay
• Up to 5 meters and 16 additives per arm
• Internal I/O options scaled for 1 – 2 arm applications
• Modbus interface with Krohne mass meters
• Wireless communication options
• Multi-lingual interface (English, French, Portuguese, Spanish and Mandarin)
• Integrated card reader options
• Powerful stand-alone operation
• Automatic temperature and pressure correction
• Up to 300 driver IDs/PINS in stand-alone mode
• Stores 10 000 transactions in stand-alone mode
• Open protocol and Modbus-RTU support

Flexible Product Options:

The MultiLoad II product suite is designed to be modular and scalable to fit the needs of virtually any loading application. MultiLoad II can be equipped with one of two internal I/O boards and/or utilise external I/O Modules (FCMs) to address the I/O control needs of the application.

In addition, the MultiLoad II Platform is available in a range of both Division 1 & 2 enclosures.

Distributed I/O Control for Complex Loading Applications:

MultiLoad was the first truly modular pre-set solution to revolutionise the industry. To accomplish this, Flow Control Modules (FCMs) are mounted in an external enclosure which is distinct and separate from the pre-set interface (MultiLoad II RCU). The FCM enclosure houses all of the I/O modules required for a particular loading bay. Each FCM module contains its own microprocessor.

As each FCM is added to the configuration, total processing power is increased and the MultiLoad becomes more powerful as it is required to address more complex loading scenarios. If I/O needs increase, one or more FCMs can be snapped into the enclosure for simple and cost-effective upgrades.
